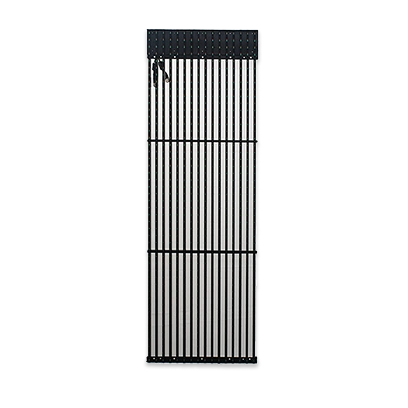

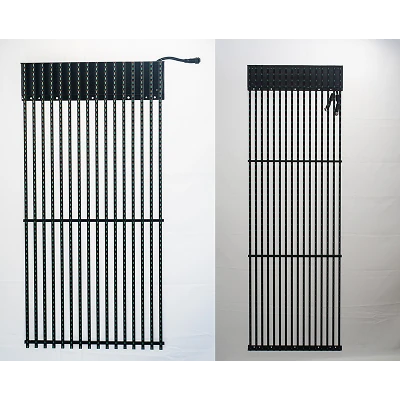

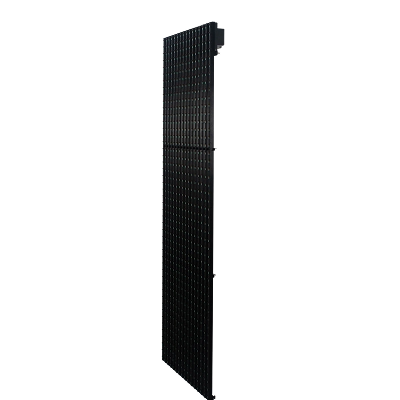

Outdoor LED Grid Screen
Outdoor LED Grid Screen is a transparent display solution for building facades and advertising. It features high brightness up to 6000 nits for clear daytime viewing. The lightweight mesh design allows 50-70% transparency with excellent ventilation. IP65 waterproof rating ensures reliable operation in rain and dust. Easy installation and low power consumption make it perfect for modern outdoor projects.
Specification
Transparency
50% - 70%
Brightness
4500 - 10000 nits
Refresh Rate
≥3840Hz
IP Rating
IP65 (Front & Rear)
Power Consumption
180W/m² (Max)
Operating Temp
-30°C ~ +60°C
Panel Size
1000×500mm / 1000×1000mm
Weight
8 - 12 kg/m²
Lifespan
≥100,000 hours
Control System
Novastar / Colorlight
Input Voltage
AC 110-240V, 50/60Hz
Wind Resistance
Level 10
/SPECIFICATIONS
Outdoor LED Grid Screen Specifications
Outdoor LED Grid Screen BOC Series Specifications feature models P10.4, P15.625, P15.625*31.25, and P31.25 for versatile outdoor display applications. These transparent screens deliver exceptional brightness up to 10000 nits for perfect visibility in direct sunlight. The innovative grid design provides 50-80% transparency while maintaining structural integrity for building facades and glass curtain walls. IP65 protection ensures reliable operation in rain, dust, and extreme temperatures from -30°C to +60°C. Energy-efficient LED technology reduces power consumption significantly. Easy installation and maintenance make these screens ideal for advertising, commercial buildings, and architectural projects requiring modern transparent display solutions with lifespan exceeding 100000 hours of continuous operation worldwide.
P10.4
P15.625
P15.625*31.25
P31.25
Pixel Pitch
10.4mm
15.625mm
15.625*31.25mm
31.25mm
Transparency
50%
60%
70%
80%
Brightness
6000 nits
8000 nits
8000 nits
10000 nits
Weight
14kg/m²
13kg/m²
13kg/m²
10kg/m²
Module Size
1000×500mm
Refresh Rate
≥3840Hz
Viewing Angle
140°/120
IP Rating
IP65
Max Power
650W/m²
Avg Power
275W/m²
Operating Temp
-30°C~+60°C
Lifespan
100,000hrs
Wind Load
Level 10
Input Voltage
AC 110-240V
Control System
Novastar
Installation of Outdoor LED Grid Screen
Professional installation of outdoor LED grid screens requires careful planning and execution. The lightweight modular design enables quick mounting on building facades, glass walls, and steel structures. Proper cable management and waterproof connections ensure long-term reliability. Installation teams must follow safety protocols and local regulations for optimal performance and durability in various weather conditions worldwide.
Best Price, Front-Service LED Display
Seamless, Front-Service LED Display for Fast Installation & Premium Visual Performance

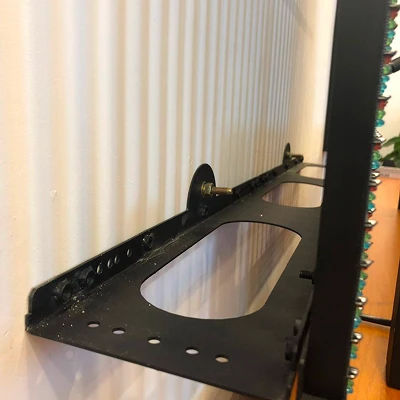

Modular Mounting System
The modular design allows flexible configuration for different building surfaces. Each panel connects easily with quick-lock mechanisms reducing installation time significantly. This system enables future maintenance and panel replacement without disrupting the entire display structure for efficient long-term operation.

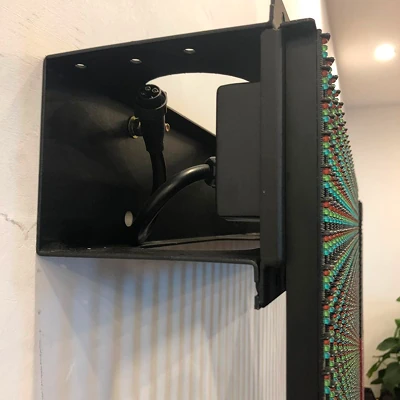

Cable Management Design
Hidden cable routing protects wiring from weather exposure and UV damage. Waterproof connectors maintain IP65 rating throughout the installation. Organized cable trays prevent tangling and simplify troubleshooting. This design ensures clean appearance while maintaining electrical safety standards for outdoor environments.
Wind Load Support Structure
Reinforced mounting brackets withstand high wind pressures up to level 10. Adjustable support arms accommodate building surface irregularities. Steel cables provide additional stability for tall installations. This structural design guarantees screen safety during storms and extreme weather conditions globally.
Supported Installation Methods
- Wall-mounted bracket installation
- Steel cable suspension system
- Ground support frame mounting
- Glass curtain wall clamping
- Roof structure attachment
Outdoor LED Grid Screen Waterproof Certification
The BOC series is designed for harsh outdoor environments and has passed professional waterproof and dust-proof testing
Waterproof Level: IP65
- Fully sealed module mask
- Protection against rain, dust, moisture, and outdoor corrosion
- Durable for long-term outdoor operation
- Ideal for regions with heavy rain, high humidity
Outdoor LED Grid Screen Application Scenarios
Outdoor LED grid screens are widely used on building facades, media walls, and large-scale advertising displays. With high transparency and lightweight design, they reduce wind load while delivering vivid visuals, making them ideal for urban landmarks and commercial promotions.
Building Facades for Media Displays
Installed on building exteriors, grid screens transform facades into dynamic media walls while maintaining airflow and natural lighting.
Shopping Centers for Advertising Impact
Enhance commercial buildings with large-format advertising displays that attract attention and increase brand exposure.
Landmarks for Urban Visual Identity
Used in city landmarks, grid screens create iconic visuals that enhance urban image and digital media presence.
Stage Backgrounds for Outdoor Events
Provide dynamic and lightweight display solutions for concerts and events, ensuring strong visual performance.
Transportation Hubs for Information Display
Ideal for airports and stations, delivering clear content while maintaining structural safety and ventilation.
/Services
Outdoor LED Grid Screen Technical Support
Our LED display specialists are available to provide professional consultation, project guidance, and real-time technical assistance-ensuring every project runs smoothly from planning to operation.
Response Time: Within 24 hours for global customers.
Professional Consultation
Receive expert recommendations on LED display models, specifications, installation methods, and scenario-based solutions.
Project Engineering Support
Receive step-by-step guidance for project design, wiring structure, configuration, and deployment-from planning to on-site implementation.
Real-Time Technical Assistance
Our support team is ready to troubleshoot issues, optimize settings, and ensure your LED display runs smoothly in real environments.
After-Sales Training &Resources
We provide training materials, user manuals, and remote training sessions to help your team easily operate and maintain the system.
