Traditional Iron & Aluminum Enclosure for LED Display

The BOF outdoor LED board delivers vibrant and smooth images, thanks to its high-brightness SMD packaging technology.

Specification

Model

BOF

Avallable

P2.5-P10

Panel Size

960*960mm

Viewing Angle

Ultra-Wide 160°/140°

Contrast Ratio

4000：1

Refresh Rate

3840Hz

Specifications

Support

/SPECIFICATIONS

Traditional Iron/Aluminum Sheet Metal Enclosure Specifications

Below are the detailed specifications of the BDF-C Series 960x960mm front-maintenance outdoor LED cabinet.

BDF-P4.44

BDF-P5.71

BDF-P6.67

BDF-P8

BDF-P10

Pixel Pitch (mm)

P4.44

P5.71

P6.67

P10

Pixel Configuration

SMD 1921

SMD 2727

Density (Pixels/㎡)

50,625

30,625

22500

15625

10000

Module Resolution (Pixel)

108x72

84 x 56

72 x 48

60 x 40

48 x 32

Module Size (mm)

480*320

Driving Mode (Duty)

1/9 scan

1/7 scan

1/6 scan

1/4 scan

1/2 scan

Cabinet Size (mm)

960x960

Cabinet Weight (KG)

Brightness (CD/㎡)

6000

6500

Viewing Angle (°)

140

Gray Grade (Bits)

Operation Power

AC100-240V 50-60H

Max. Power Consumption (W/㎡)

650

Avg. Power Consumption (W/㎡)

220

240

220

Frame Frequency (Hz)

≥60

Refresh Frequency (Hz)

≥3840

Working Temperature (℃)

-20～+50

Protection Grade

IP65

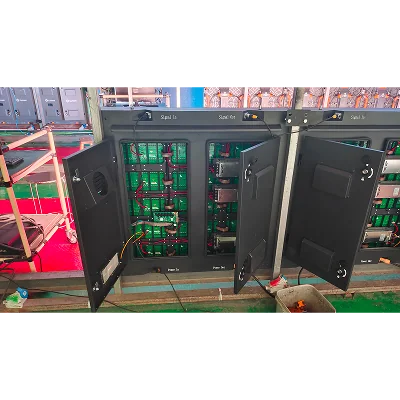

Installation of Traditional Iron/Aluminum Sheet Metal Enclosure

The BOF 960x960mm cabinet is designed for flexible outdoor installation,supporting multiple mounting methods to fit different project environments.

Best Price, Front-Service LED Display

Seamless, Front-Service LED Display for Fast Installation & Premium Visual Performance

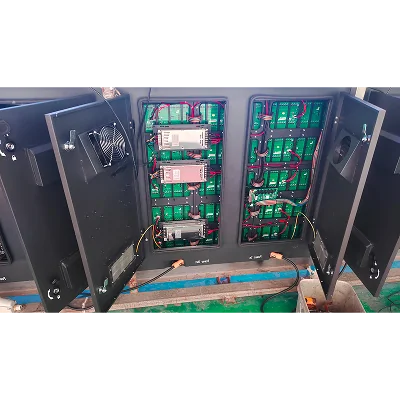

Front Access for Wall-Mounted Installation

Full front-access design for module, power supply, and receiving card servicing. No rear space needed. Perfect for building facades, wall-mounted billboards, and narrow spaces.

Universal LED Module Design

Modules fit on both left and right sides of the cabinet. This enhances installation flexibility and reduces the need for spare parts.

Cable-less Module Structure

Cable-less system eliminates fragile flat cables. It reduces failure points and simplifies on-site installation.

Supported Installation Methods

Traditional Iron/Aluminum Sheet Metal Enclosure Waterproof Certification

The BOF series is designed for harsh outdoor environments and has passed professional waterproof and dust-proof testing

Waterproof Level: IP65

Fully sealed module mask
Protection against rain, dust, moisture, and outdoor corrosion
Durable for long-term outdoor operation
Ideal for regions with heavy rain, high humidity

/Services

Traditional Iron/Aluminum Sheet Metal Enclosure Technical Support

Our LED display specialists are available to provide professional consultation, project guidance, and real-time technical assistance-ensuring every project runs smoothly from planning to operation.
Response Time: Within 24 hours for global customers.

Professional Consultation

Receive expert recommendations on LED display models, specifications, installation methods, and scenario-based solutions.

Project Engineering Support

Receive step-by-step guidance for project design, wiring structure, configuration, and deployment-from planning to on-site implementation.

Real-Time Technical Assistance

Our support team is ready to troubleshoot issues, optimize settings, and ensure your LED display runs smoothly in real environments.

After-Sales Training &Resources

We provide training materials, user manuals, and remote training sessions to help your team easily operate and maintain the system.
