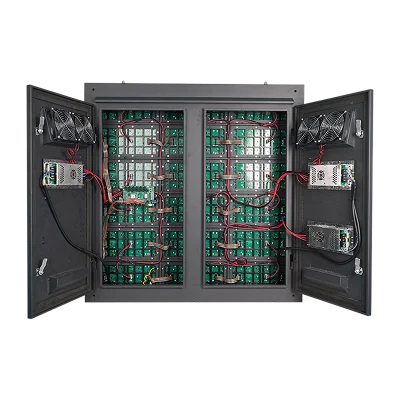

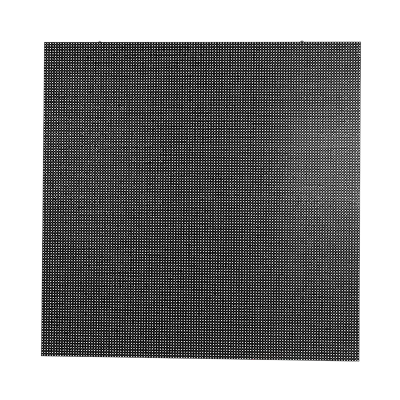

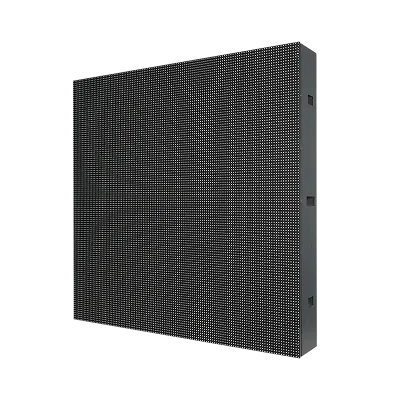

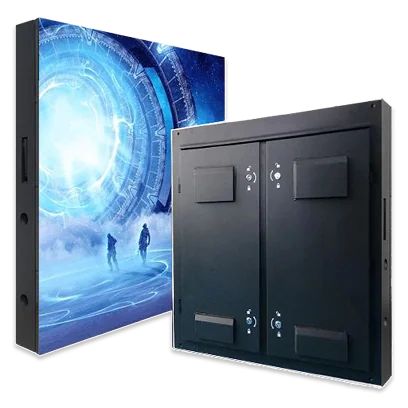

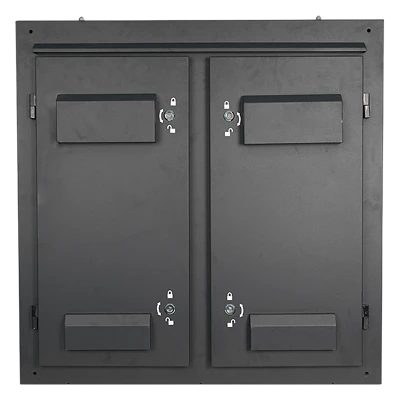

Iron/Aluminum Enclosure for Commercial LED Display
The BOF outdoor LED display utilizes 320×160mm back-service LED modules and features an IP65-rated waterproof design, making it an ideal choice for outdoor applications. Its advanced technology also positions it as an excellent solution for high-end commercial screens.
Specification
Model
BOF-C
Avallable
P3-P10
Panel Size
960*960mm
Viewing Angle
Ultra-Wide 160°/140°
Contrast Ratio
4000：1
Refresh Rate
3840Hz-7680Hz
/SPECIFICATIONS

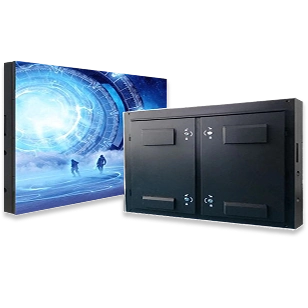

Iron/Aluminum Enclosure for Commercial LED Display Specifications
The iron and aluminum enclosures offer high structural strength, corrosion resistance, and efficient heat dissipation, ensuring durability and long-term stability for LED displays in various commercial and outdoor environments.
BOF-B-3
BOF-B-4
BOF-B-5
BOF-B-6
BDF-P8
BOF-B-10
BOF-B-16
Physical Pitch
3mm
4mm
5mm
6mm
8mm
10mm
16mm
Pixel Configuration
SMD1921
SMD1921
SMD 2727
SMD 2727
SMD3535
SMD3535
DIP346
Pixel Density
97656px/m2
62500px/m2
40000px/m2
22376px/m2
15625px/m2
10000px/m2
3906px/m2
Module Dimension(WxH)
192x192mm
320x160mm
320x160mm
320x160mm
320x160mm
320x160mm
320x160mm
Panel Dimension(WxHxD)
960x960x150mm / 37.79"x37.79"x5.9"
No. of Module/panel(WxH)
5x5
3x6
3x6
3x6
3x6
3x6
3x6
Module Resolution
64x64p
80x40px
64x32px
48x24px
40x20px
32x16
32x16
Panel Resolution
320x320px
240x240px
192x192px
144x144px
120x120px
96x96px
60x60px
Panel Material
Cold steel
Panel Weight
65kg / 143.3lbs
Gray Scale
16bit
Contrast Ratio
2000:1
Avg. Power Consumption
230w/m2
Max. Power Consumption
650w/m2
Operating Temp/Humidity
-10°C - 60°C / 10% - 60%
Storage Temp/Humidity
-30°C - 60°C/ 10% - 60%
Refresh Rate
3840hz
Brightness
≥6500 nits
Viewing Angle(H/V)
160°/140°
Expected Lifetime
100,000hrs
Max. Stacking/Hanging
10
Service
Rear
IP Rating(Front/Rear)
IP65/IP54
Certification
CCC,CE,ETL,RoHS
Commercial LED Display Iron/Aluminum Enclosure Installation
The BOF-B cabinet is designed for flexible outdoor installation,supporting multiple mounting methods to fit different project environments.
Best Price, Front-Service LED Display
Seamless, Front-Service LED Display for Fast Installation & Premium Visual Performance
Front Access for Wall-Mounted Installation
Full front-access design for module, power supply, and receiving card servicing. No rear space needed. Perfect for building facades, wall-mounted billboards, and narrow spaces.
Universal LED Module Design
Modules fit on both left and right sides of the cabinet. This enhances installation flexibility and reduces the need for spare parts.
Cable-less Module Structure
Cable-less system eliminates fragile flat cables. It reduces failure points and simplifies on-site installation.
Supported Installation Methods
- Wall-Mounted Installation
- Steel Structure Installation
- Pole / Single-Column Installation
- Stacked Installation
Iron/Aluminum Enclosure for Commercial LED Display Waterproof Certification
The BOF-B series is designed for harsh outdoor environments and has passed professional waterproof and dust-proof testingThis LED display has reliable waterproof and dust-proof protection. It ensures stable performance outdoors, protects against moisture and dust, and improves safety and service life for commercial use.
Waterproof & Protection Grade
Waterproof Level: IP65
- Fully sealed module mask
- Protection against rain, dust, moisture, and outdoor corrosion
- Durable for long-term outdoor operation
- Ideal for regions with heavy rain, high humidity
/Services
Iron/Aluminum Enclosure for Commercial LED Display Technical Support
Our LED display specialists are available to provide professional consultation, project guidance, and real-time technical assistance-ensuring every project runs smoothly from planning to operation.
Response Time: Within 24 hours for global customers.
Professional Consultation
Receive expert recommendations on LED display models, specifications, installation methods, and scenario-based solutions.
Project Engineering Support
Receive step-by-step guidance for project design, wiring structure, configuration, and deployment-from planning to on-site implementation.
Real-Time Technical Assistance
Our support team is ready to troubleshoot issues, optimize settings, and ensure your LED display runs smoothly in real environments.
After-Sales Training &Resources
We provide training materials, user manuals, and remote training sessions to help your team easily operate and maintain the system.
