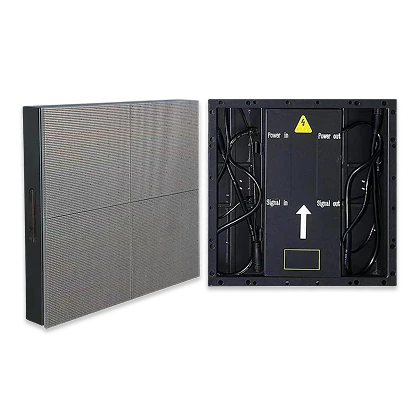

LED Floor Tile Series – Commercial LED Screen

BD indoor floor LED display adopts a special design in terms of load-bearing,protection performance, and heat dissipation performance. Its purpose is to make the floor tile screen adaptable to high-intensity stepping and long-term stable operation

Specification

Model

Avallable

P2.5-P3.9

Panel Size

500*1000mm

Viewing Angle

Ultra-Wide 160°/140°

Contrast Ratio

4000：1

Refresh Rate

3840Hz

Specifications

Application

Support

/SPECIFICATIONS

Commercial LED Floor Screen Specifications

This LED floor screen features high load-bearing capacity, anti-slip surface, and impact resistance for safe interaction. With high brightness and fast response, it ensures vivid visuals and smooth performance in retail, events, and immersive environments.

EA-iFloor-P2.5

EA-iFloor-P2.6

EA-iFloor-P2.97

EA-iFloor-P3.91

Pixel Pitch (mm)

P2.5

P2.6

P2.97

P3.91

Pixel Configuration

SMD1415

SMD1921

Density (Pixels/㎡)

160,000

147,456

112,896

65,536

Module Resolution (Pixel)

100x100

96x96

84x84

64x64

Module Size (mm)

250x250

Driving Mode (Duty)

1/25

1/32

1/42

1/16

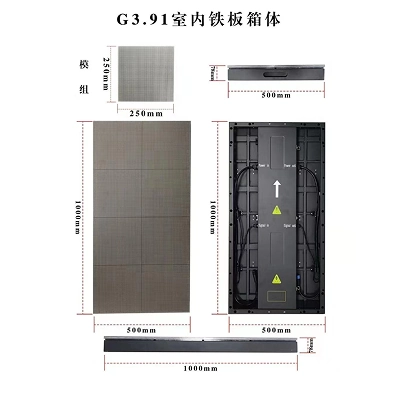

Cabinet Size (mm)

500x1000

Cabinet Weight (KG)

Brightness (CD/㎡)

2,500

Viewing Angle (°)

110

Gray Grade (Bits)

Operation Power

AC100-240V 50-60Hz

Max. Power Consumption (W/㎡)

≤800

Avg. Power Consumption (W/㎡)

≤400

Frame Frequency (Hz)

50-60

Refresh Frequency (Hz)

≥3840

Working Temperature (℃)

-20～+60

Protection Grade

≥3840

Installation of Commercial LED Floor Screen

The Commercial LED Floor Screen is engineered for high-traffic indoor environments, delivering stunning visuals while supporting heavy foot traffic. Its robust construction features load-bearing modules with anti-slip and scratch-resistant surfaces, ensuring durability and safety. The installation system prioritizes leveling precision and quick assembly, allowing for seamless integration into retail spaces, exhibition halls, or entertainment venues without disrupting floor aesthetics.

Best Price, Front-Service LED Display

Seamless, Front-Service LED Display for Fast Installation & Premium Visual Performance

Super Strong Load-Bearing Structure

Each module supports over 1.5 tons per square meter, ensuring safety under heavy foot traffic. Reinforced materials prevent deformation and maintain long-term stability.

Quick-Lock Modular Assembly

Tool-free quick-lock mechanisms enable fast installation and removal. Modules snap together securely, reducing setup time and allowing for easy replacement or reconfiguration.

Front-Access Maintenance Design

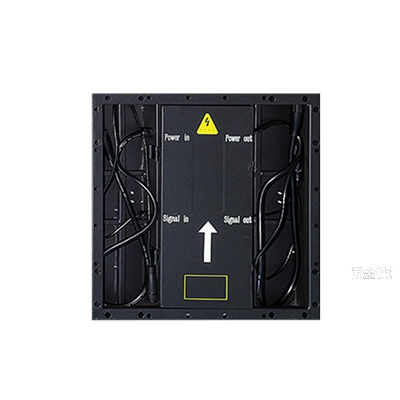

Full front-access design allows individual module servicing without lifting the entire floor. Power and data connections are accessible from the top, minimizing downtime and disruption.

Supported Installation Methods

Commercial LED Floor Screen Waterproof Certification

The Commercial LED Floor Screen features an IP65 waterproof rating, offering robust protection against dust and low-pressure water jets. This certification ensures reliable performance in indoor environments where spills or damp mopping may occur. However, due to its floor-mounted application, prolonged immersion or high-pressure washing is not recommended to maintain long-term durability and safety.

Indoor IP65 Rating

Fully protected against dust ingress (dust-tight)
Withstands low-pressure water jets from any direction
Suitable for damp mopping and accidental spills
Not designed for prolonged water immersion
Avoid high-pressure washing to prevent seal damage

/APPLICATION

Commercial LED Floor Screen Application Scenarios

The Commercial LED Floor Screen transforms ordinary floors into interactive digital experiences. With high load-bearing capacity and scratch-resistant surface, it withstands heavy foot traffic while displaying vibrant visuals. Ideal for creating immersive environments, this floor screen engages visitors through dynamic content, interactive games, or wayfinding guidance in various indoor public spaces.

Shopping Mall Atriums

Malls install LED floors in central atriums for interactive promotions and seasonal displays. Shoppers walk on dynamic visuals, creating memorable experiences that increase dwell time and foot traffic.

Museum and Exhibition Halls

Museums use interactive floor screens for educational exhibits. Visitors trigger animations by stepping on specific areas, making learning engaging and encouraging exploration throughout the hall.

Nightclubs and Entertainment Venues

Nightclubs feature LED dance floors that sync with music and lighting. The glowing surface creates an energetic atmosphere, enhancing the overall experience for partygoers and performers.

Airport and Transit Lounges

Airports deploy LED floors in lounges for dynamic wayfinding. Directional arrows and flight information appear beneath passengers’ feet, improving navigation flow and reducing congestion.

Corporate Event Stages

Companies use LED floors on event stages for product launches. The display synchronizes with background screens, creating immersive visual presentations that captivate audiences and reinforce brand messaging

/Services

Commercial LED Floor Screen Technical Support

Our LED display specialists are available to provide professional consultation, project guidance, and real-time technical assistance-ensuring every project runs smoothly from planning to operation.
Response Time: Within 24 hours for global customers.

Professional Consultation

Receive expert recommendations on LED display models, specifications, installation methods, and scenario-based solutions.

Project Engineering Support

Receive step-by-step guidance for project design, wiring structure, configuration, and deployment-from planning to on-site implementation.

Real-Time Technical Assistance

Our support team is ready to troubleshoot issues, optimize settings, and ensure your LED display runs smoothly in real environments.

After-Sales Training &Resources

We provide training materials, user manuals, and remote training sessions to help your team easily operate and maintain the system.
