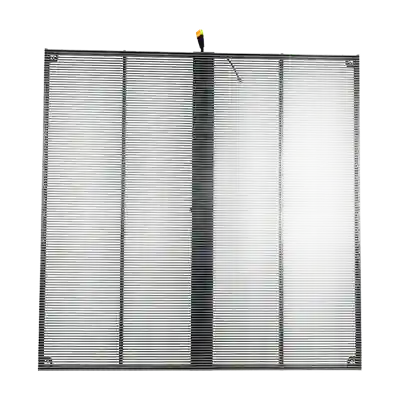

Transparent LED Panel Fixed Installation Series

The BG indoor transparent LED screen is lightweight, energy-efficient, and environmentally friendly. With a transparency rate of up to 70% and seamless splicing capability, it is easy to install and maintain, making it ideal for a wide range of indoor applications.

Specification

Model

Avallable

P2.6-P7.82

Panel Size

1000*1000mm

Viewing Angle

Ultra-Wide 160°/140°

Contrast Ratio

4000：1

Refresh Rate

3840Hz

Specifications

Application

Support

/SPECIFICATIONS

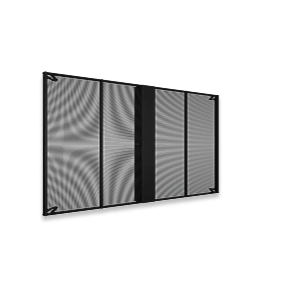

Fixed Installation Transparent LED Panel Series Specifications

Our fixed installation transparent LED panels offer high transparency, ultra-lightweight design, and flexible installation options. Ideal for storefronts and architectural displays, they deliver vibrant visuals without obstructing natural light.

BG-P2.6

BG-P2.8

BG-P3.91-8S

BG-P3.91-16S

BG-P7.82

Pixel Pitch (mm)

P2.6-5.2

P2.8-5.6

P3.91-7.82

P7.82

Pixel Configuration

SMD1921

Density (Pixels/㎡)

73,728

61,952

32,768

16,384

Module Resolution (Pixel)

192x24

176x22

128x16

64x16

Module Size (mm)

500x125

Driving Mode (Duty)

1/12

1/11

1/8

1/16

1/4

Cabinet Size (mm)

1000x1000

Cabinet Weight (KG)

6.7

Brightness (CD/㎡)

4000

5000

4500

2500

4500

Transparency

Viewing Angle (°)

140

Gray Grade (Bits)

Operation Power

AC100-240V 50-60Hz

Max. Power Consumption (W/㎡)

800

Avg. Power Consumption (W/㎡)

220

Frame Frequency (Hz)

≥60

Refresh Frequency

≥3840

Working Temperature (ºC)

-20～+60

Protecting Grade

IP33

Installation of Fixed Installation Transparent LED Panel Series

The Fixed Installation Transparent LED Panel Series offers sleek, permanent mounting solutions for modern indoor spaces. With high transparency and lightweight design, these panels integrate seamlessly into windows, lobbies, or atriums without obstructing views. The robust aluminum frame ensures stability, while versatile installation options simplify deployment in retail, corporate, or cultural venues.

Best Price, Front-Service LED Display

Seamless, Front-Service LED Display for Fast Installation & Premium Visual Performance

Ultra-Slim Wall Mount

Panels attach directly to walls with minimal brackets, preserving interior aesthetics and saving space. Ideal for storefronts and lobbies.

Grid Suspension System

A modular ceiling grid allows flexible panel arrangement, including curves and tiers, for large-scale visual displays in malls or exhibition halls.

Front-Access Maintenance

Full front service access enables quick module and power replacement without rear clearance, perfect for confined or high-traffic areas.

Supported Installation Methods

Fixed Installation Transparent LED Panel Series Waterproof Certification

The Fixed Installation Transparent LED Panel Series features an IP40 rating, providing reliable protection for indoor environments. This certification ensures resistance against solid objects larger than 1mm, safeguarding internal components from dust and debris while maintaining optimal performance and longevity in controlled indoor settings.

Indoor IP40 Rating

Protects against solid objects over 1mm
Prevents dust ingress into internal components
Ensures reliable operation in indoor environments
No protection against water (indoor use only)
Ideal for dust-controlled commercial spaces

/APPLICATION

Fixed Installation Transparent LED Panel Series Application Scenarios

The BG Transparent LED Panel Series is ideally suited for indoor environments where visual impact and spatial transparency are essential. With high see-through rates and ultra-slim design, these displays enhance modern interiors by delivering dynamic content while preserving natural light and architectural aesthetics.

High-End Retail Storefronts

Luxury boutiques use transparent LED panels on glass windows to showcase promotions and brand stories without blocking indoor views or natural light.

Corporate Office Lobbies

Corporate headquarters install these panels in lobbies and atriums to display company news, welcome messages, or dynamic branding while maintaining an open, spacious feel.

Shopping Mall Atriums

Malls deploy transparent screens in central atriums for advertising and events, creating eye-catching visuals without disrupting the open environment or foot traffic.

Museums and Exhibition Halls

Cultural venues integrate transparent displays to overlay digital information onto exhibits or artifacts, enhancing visitor engagement without obscuring the original displays.

Airport and Transit Lounges

Airports utilize transparent screens in lounges and corridors for way-finding, flight information, and advertisements while ensuring clear sight-lines and passenger flow

/Services

Fixed Installation Transparent LED Panel Series Technical Support

Our LED display specialists are available to provide professional consultation, project guidance, and real-time technical assistance-ensuring every project runs smoothly from planning to operation.
Response Time: Within 24 hours for global customers.

Professional Consultation

Receive expert recommendations on LED display models, specifications, installation methods, and scenario-based solutions.

Project Engineering Support

Receive step-by-step guidance for project design, wiring structure, configuration, and deployment-from planning to on-site implementation.

Real-Time Technical Assistance

Our support team is ready to troubleshoot issues, optimize settings, and ensure your LED display runs smoothly in real environments.

After-Sales Training &Resources

We provide training materials, user manuals, and remote training sessions to help your team easily operate and maintain the system.
